Repeat (13) Advanced Printing

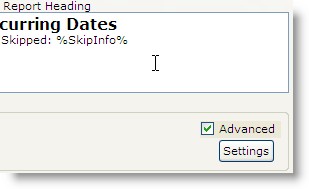

This is only accessible with the Repeat tool.

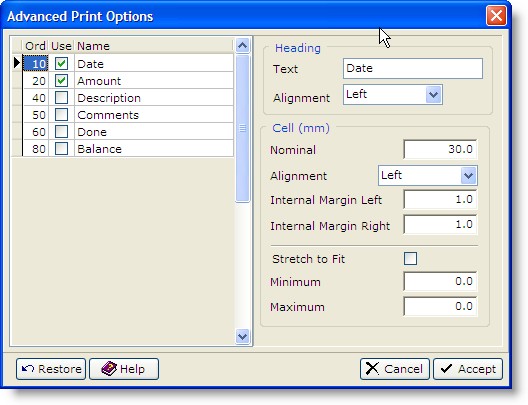

Grid

Ord ("Order")

You control the column order using this number. The rows will sort into ascending Ord order.

Use

Tick to include the column in your report.

Name

This is the name of the field. You can't change it.

Heading

Text

This is the text displayed at the top of each column.

Alignment

Control whether the heading text is aligned left, right, centre, block.

Cell (mm)

Nominal

This is the width of the cell in millimeters, although it will change automatically if you select Stretch to Fit (below).

Alignment

Control whether the cell text is aligned left, right, centre, block.

Internal Margin Left

This is the gap between the left side of the cell and the cell text.

Internal Margin Right

This is the gap between the right side of the cell and the cell text.

Stretch

Stretch to Fit

Tick the box to make the cell spread out across the page. If more than one column has this attribute then the stretched cells will apportion the available space between them. You can control the minimum & maximum width using the settings below.

Minimum

If possible, the report will honour this as the minimum width irrespective of other stretch considerations.

Maximum

If possible, the report will honour this as the maximum width irrespective of other stretch considerations.
